直饮水设备

一、适用范围
适用于电子、电厂、化工、实验等行业工艺用水。
1、电子超纯水:25
oC时电阻率18.2MΩ.cm,其他指标由使用方确定;
2、电厂用超纯水:25
oC时电阻率大于5MΩ.cm ;
3、普通纯水:根据具体要求确定指标。

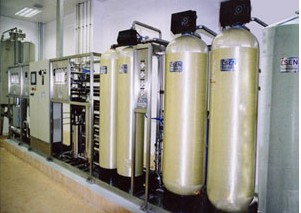

二、系统组成

1、 普通纯水制备工艺:双级反渗透系统(或反渗透系统+EDI系统);
2、 超纯水制备工艺:双级反渗透系统+EDI系统+后处理系统处理。

三、系统特点

1、  采用世界先进的膜分离技术, 保证饮水品质。

2、 五级过滤,综合发挥各滤芯的有效作用,去除原水中的泥沙、悬浮物、胶体 有机物、重金属、可溶性固体、细菌、病毒、和其他有害杂质,  保留水中部分有益矿物质。

3、 采用静音隔膜泵,使用寿命长,运行质量可靠。

4、 具有高压冲洗反渗透膜的功能,启动制水时自动冲洗一次,可有效延长逆渗透膜寿命。

5、 LCD液晶显示,制水过程自动控制(原水缺水停机、储水罐水满停机)。

6、 现制现用现饮,高净水、低成本、全方位满足您的用水饮水需求。

7、 本产品适用于办公、机关、集团、学校,根据设备的产水量分为多种型号,视饮用水人数进行选型,设备可以配合电开水器、制冰机、咖啡机等使用,灵活方便 。

1、It adopts the advanced membrane separation technology, guarantee the potable water quality.

2、Category five filter, the comprehensive use of filtration of the effective, remove the sediment transport, raw material, colloid organics, heavy metal, soluble solids,

bacteria, viruses, and other harmful impurities, retain water partial beneficial minerals.

3、Using soundless diaphragm pumps, it has long service life. the operation quality is reliable.

4、With high-pressure washing R.O. membrane function, start making water rinse automatically once, it can prolong the R.O. membrane life.

5、LCD, can let water process auto-control (raw water shortage, full water contains will stop).

6、Now system currently in use now drink, high water purification, low cost, omni-directional meets your water demand.

7、This product is suitable for office, organs, group, school, according to produce a water yield is divided into many types of equipment,

depending on the number of equipment type selection, drinking water can cooperate electricity boiled water machine, ice machine, coffee machine etc, flexible and convenient .



四、规格选型表


型号
产水量 供水管径 供电量 最大载荷 机房尺寸标准布置1 机房尺寸标准布置2 机房面积 机房净高
m3/hr mm kw Kg/ m3 长(mm)×宽(mm)  长(mm)×宽(mm) m2 mm
ESEN-SPW-1 1 DN25 20 2000 7500×4000 9300×3200 30 4000
ESEN-SPW-2 2 DN50 30 2000 8000×4000 10000×3200 32 4000
ESEN-SPW-4 4 DN50 40 2500 10000×5000 12500×4000 50 4000
ESEN-SPW-5 5 DN50 50 2500 12000×5000 15000×4000 60 4000
ESEN-SPW-10 10 DN80 60 2500 12000×8000 16000×6000 96 4000
ESEN-SPW-15 15 DN80 70 2500 20000×8000 26000×6000 160 4000
ESEN-SPW-20 20 DN100 80 4000 25000×8000 31000×6000 200 4000
ESEN-SPW-30 30 DN100 100 4000 25000×10000 31000×8000 250 4000
ESEN-SPW-50 50 DN150 130 4000 27000×10000 34000×8000 270 4000
ESEN-SPW-100 100 DN200 200 4000 35000×10000 44000×8000 350 6000
ESEN-SPW-200 200 DN300 400 6000 35000×20000 4400×16000 700 6000

: 1、以上为常规设计,也可根据用户的实际情况另行设计;      2、供电量为常规设计的数据, 特殊情况另行确定;
   3、纯水供水泵组的扬程、流量根据实际项目的条件确定。

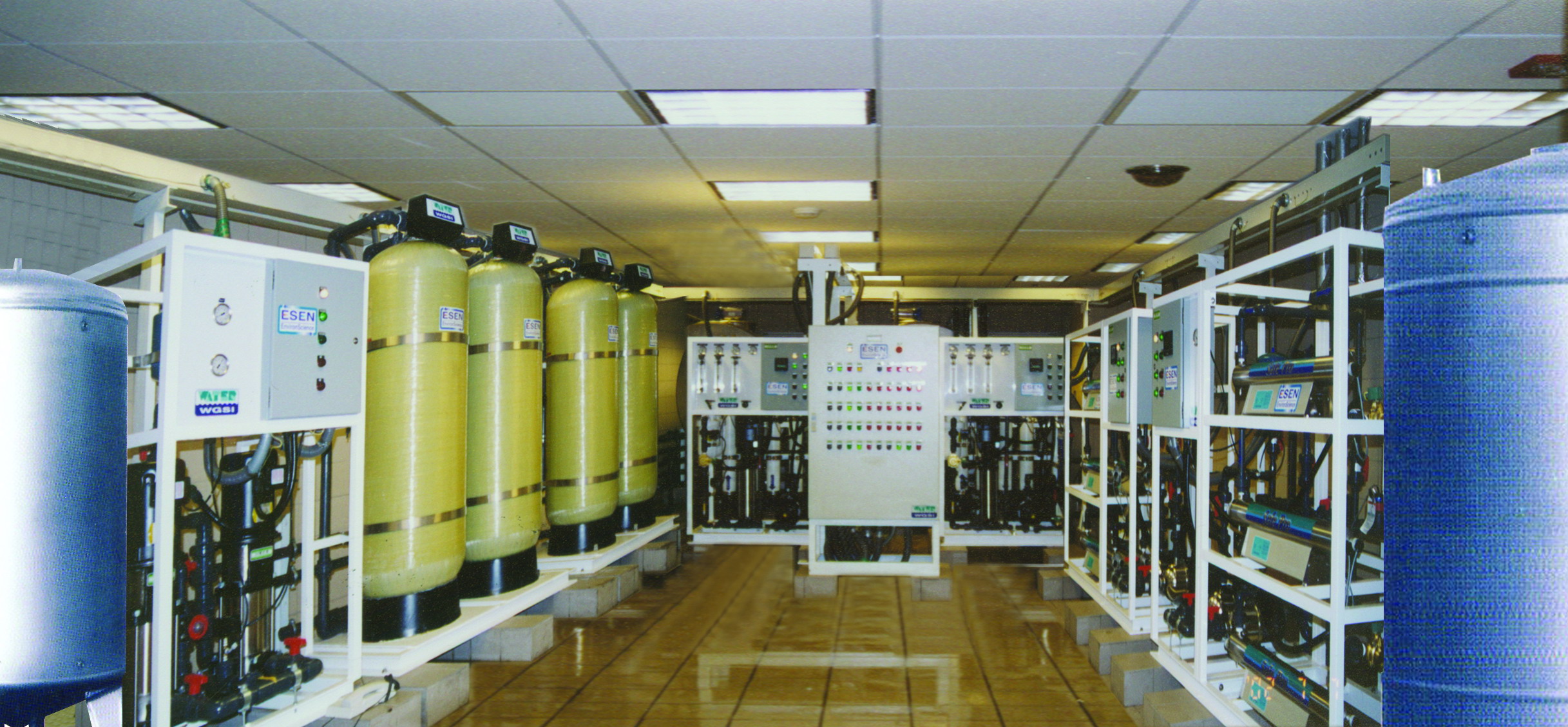

五、超纯水系统机房设备基本运行条件

序号 内容 要求
1
供水: 为市政自来水,供水压力大于0.2Mpa, 小于0.5 Mpa, 温度大于5℃,其它水质需增设预处理设备;
2
下水: 大于系统产水量的2-5倍, 主要为过滤器的反洗瞬时水量;
3
供电: 380V,50Hz,三相五线制,用电量参考选型表;
4
装修要求: 吊顶、照明等根据厂家整体要求设计,墙面、地面做防水处理;
5
室内温度、通风: 温度10℃-30℃, 新风量6-12次/小时,进风口加装空气净化器;
6
压缩空气: 压力大于0.5Mpa, 小于0.8 Mpa;

7

高纯氮气: 如出水水质电阻率大于1.0MΩ.cm,则需要99.99%高纯氮气。
